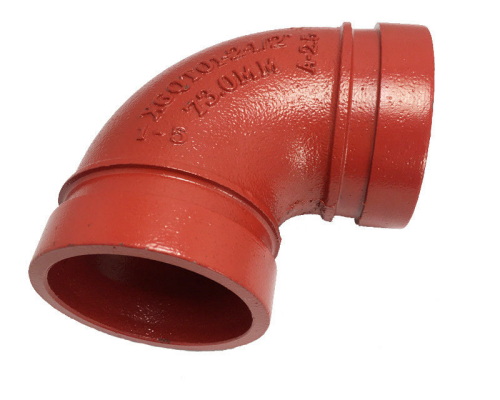

Grooved Fittings

AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall thicknesses
Available with a wide variety of coatings and linings
Victaulic can supply tapped fittings that meet ANSI B16.1 dimension locations
Sizes from 3 – 36″ | DN80 – DN900
Pressure rated up to 350 psi | 2413 kPa | 24 bar

INQUIRY

Product Details

Product Tags

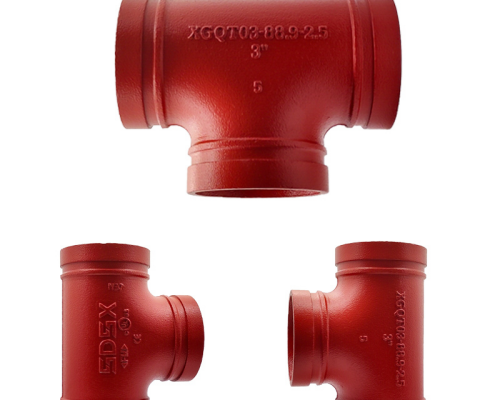

Ductile Iron Grooved Fitting

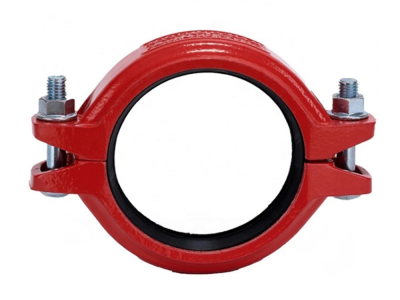

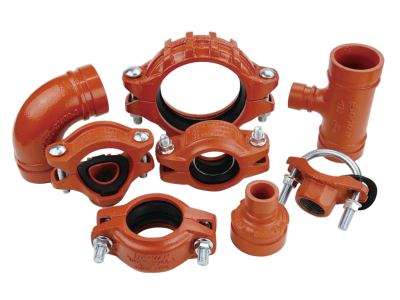

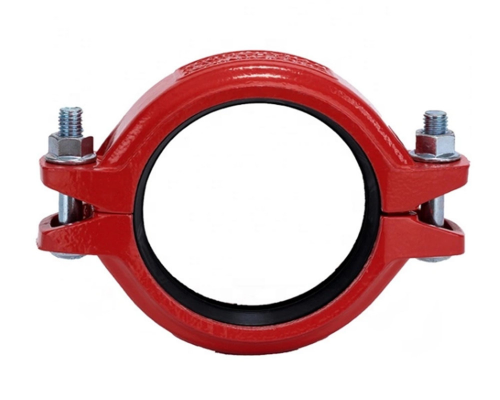

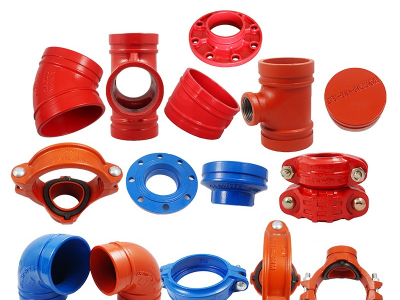

Ductile iron groove fittings are formed by machining a groove at the ends of the fitting. The Ductile Iron Grooved Fittings are designed with 90% reused iron. The fittings also have carbon, iron, silicon, and other constituents. The Ductile Iron Grooved Pipe Fittings have good flexibility during movement or deflection in the system. The groove fittings consist of couplings, outlets, valves, replacement parts, etc. A Di Grooved Coupling is employed to connect piping equipment in both wet and dry systems. The couplings allow them to extend or decrease the pipe run. The Grooved Di Pipe Fittings are limited for use in rolled and cut specifications. The grooves are made in accordance with the ANSI/AWWA C606 specification.

What Is The Advantage Of Using Di Grooved Fittings?

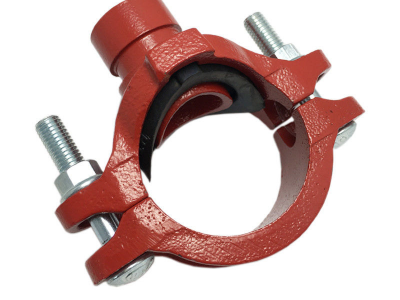

The Di grooved fittings have several advantages that make them a viable choice in different applications. Ductile Iron Grooved End Cap can be easily cast or machined and have superior strength. These grooved fittings have good expansion and contraction. The Di Grooved Pipe Outlets allow for easy installation and have less downtime. The fittings are very durable and have a long service life. A Groove Flexible Coupling is also easy to work with and is a cost-effective option.

The Better Way to Make Connections Every PALM BRI product is designed, engineered and manufactured to work better for longer. Made to USA standards to easily interchange with other major manufacturers, PALM BRI grooved-end fittings and pipe connectors are ideal for use in countless applications. With over 20 years of manufacturing expertise, our primary drivers for construction and innovation are safety, effectiveness, and ease-of-use

Ductile Iron Pipe Fittings Specification List

· Specification : Ductile Iron Fittings

· Sizes : DN80 – DN900

· Usage : Gas Pipe/ Chemical Fertilizer Pipe

· Certified : ISO Certified

· End Connection Type : Groove End

· Durable : Long Lasting

· Standard : ANSI/AWWA C-606

· Maximum Working Pressure : 2.5 MPa

· Coating : Epoxy Red Paint – 3000/3001
